Model : SA18-3A
Keyword :Raman/fluorescence probe accessories
400-820-7939
Technical Support：021-50687686

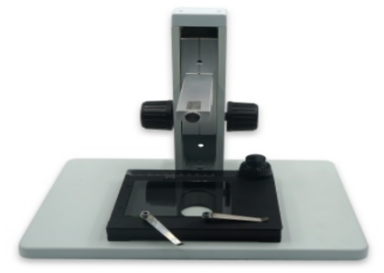

SA18-3A is a compact 3d fine-tuning measurement platform suitable for our various series of Raman and fluorescent probes. The product can provide 60mm horizontal axial stroke, 55mm horizontal longitudinal stroke, 1mm reading accuracy, and 100mm vertical stroke.
◆ Three-dimensional continuous regulation;
◆ Rapid positioning;
◆ Fine tuning accuracy 1mm.
Specification |
|
| Item | Value |
| Size | 380X260mmX20mm |
| Horizontal translation table size | 187X 160mm |
| Stem height | 300mm |
| Horizontal stroke | axial direction60mm，lengthways55mm |
| Vertical stroke | 100mm |
| Reading accuracy | 1mm |
| The total weight of stents | 4kg |
| Applicable product | RPB Raman probe series /FPB fluorescent probe series |
